Waveshare Industrial-Grade Isolated 8-Ch RS485 Hub,Rail-Mount 8 Channel Repeater,Extends 8-ch RS485 Slave Ports Via 1-ch RS485 Master Port, with Isolation And Relay,300~460800bps Baudrate

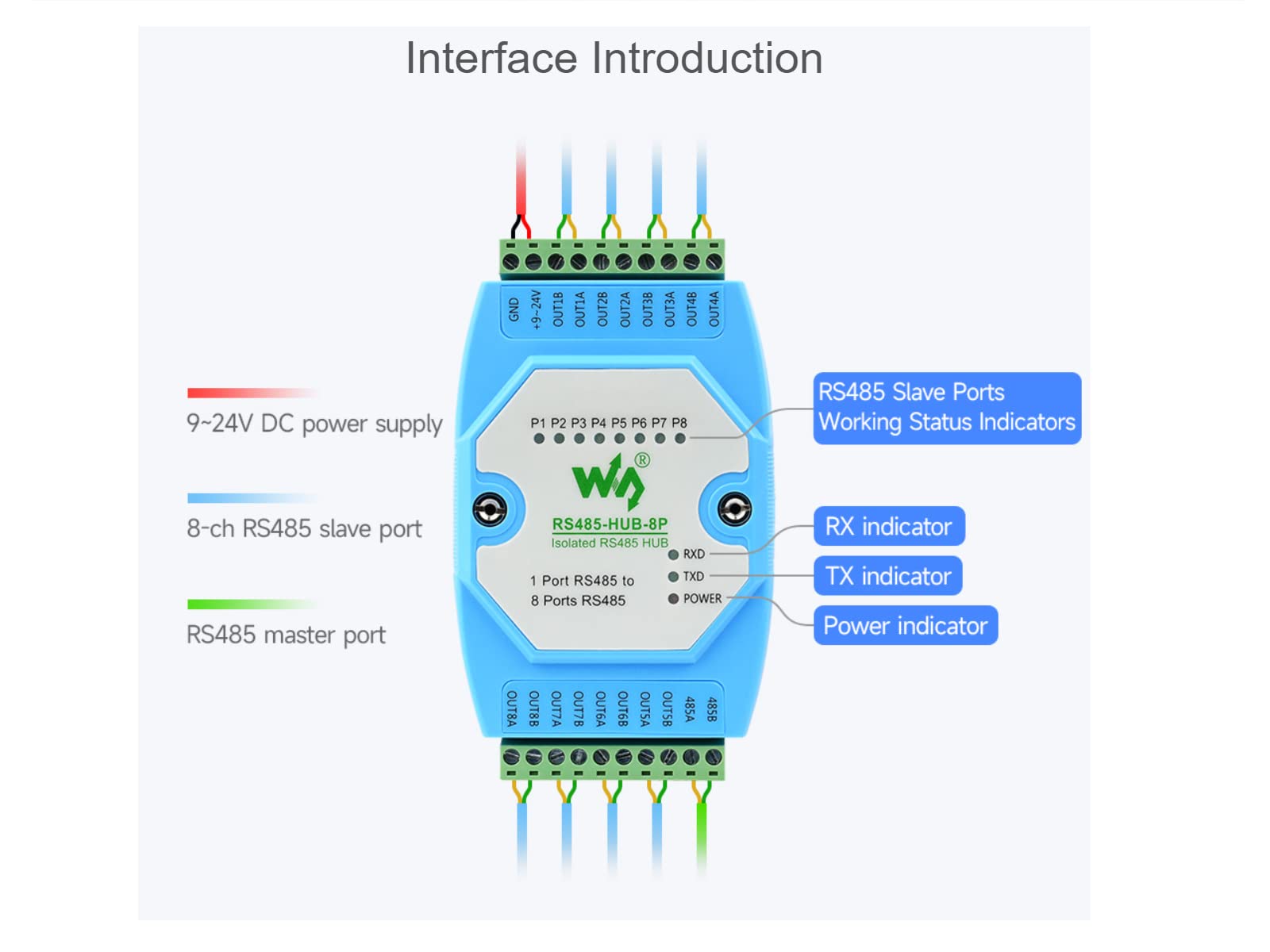

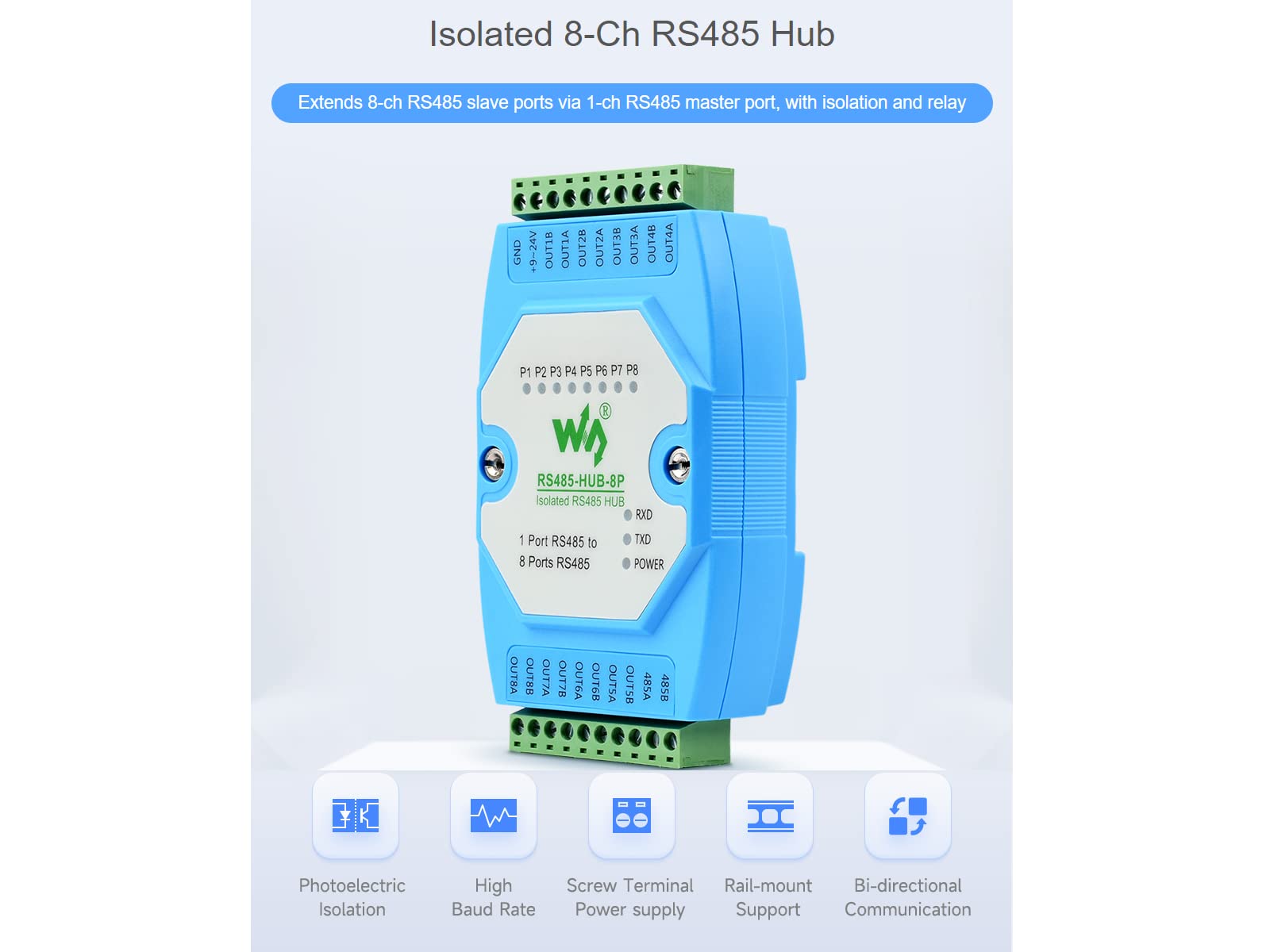

- 【Isolated 8-Ch RS485 Hub】Extends 8-ch RS485 slave ports via 1-ch RS485 master port, with isolation and relay

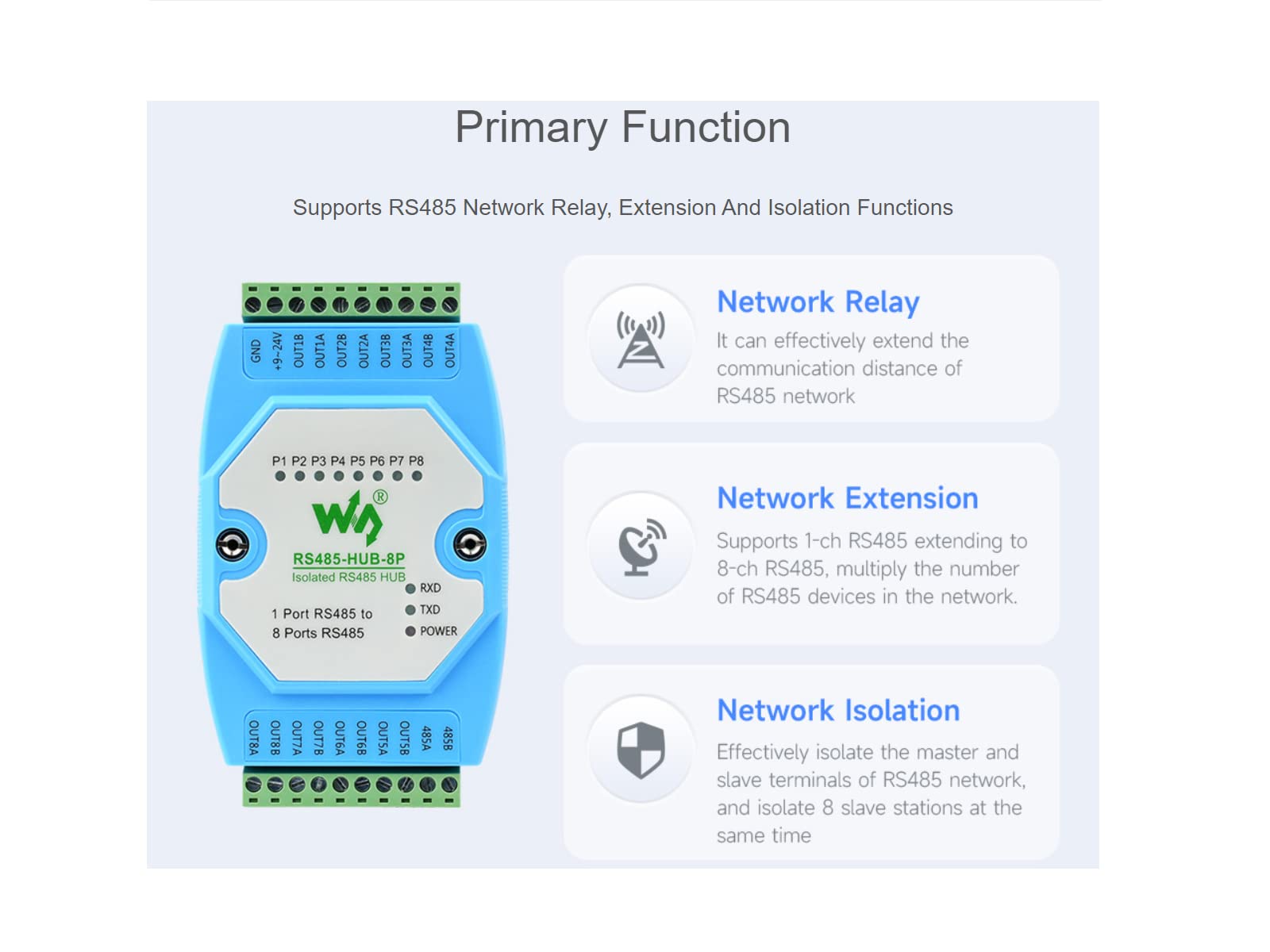

- 【Primary Function】Supports RS485 Network Relay, Extension And Isolation Functions

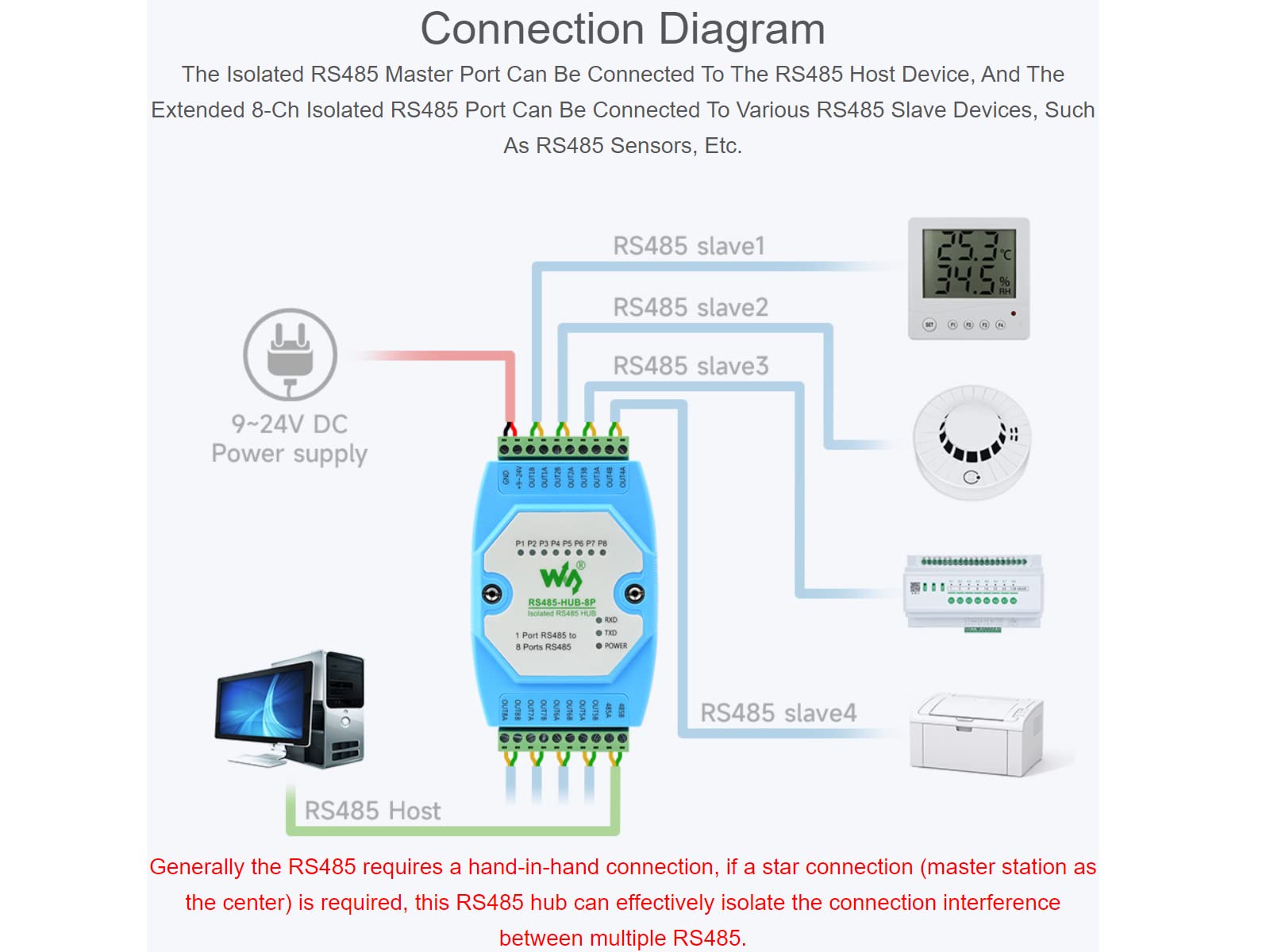

- 【Connection Diagram】The Isolated RS485 Master Port Can Be Connected To The RS485 Host Device, And The Extended 8-Ch Isolated RS485 Port Can Be Connected To Various RS485 Slave Devices, Such As RS485 Sensors, Etc.

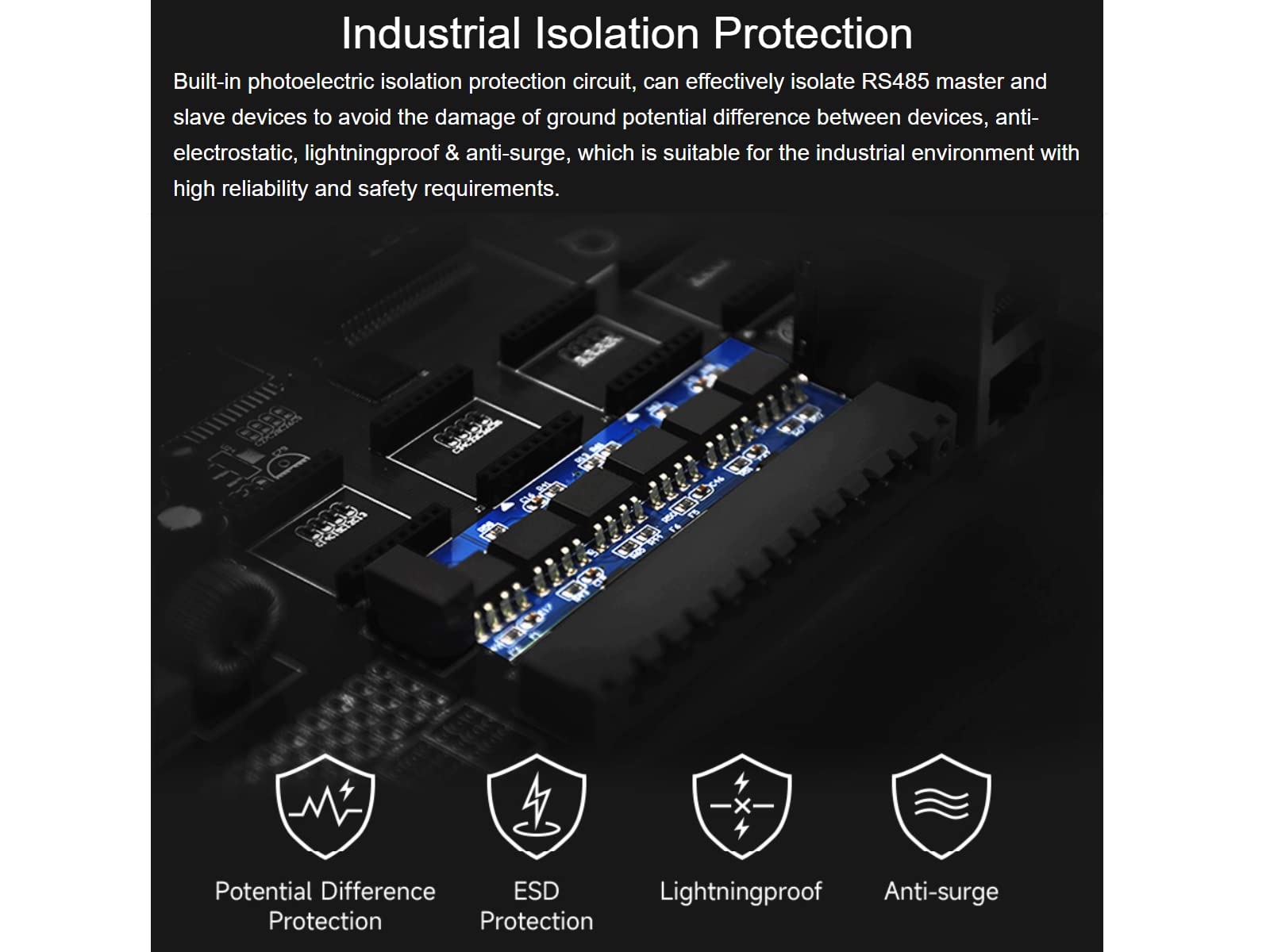

- 【Industrial Isolation Protection】Built-in photoelectric isolation protection circuit, can effectively isolate RS485 master and slave devices to avoid the damage of ground potential difference between devices, anti-electrostatic, lightningproof & anti-surge, which is suitable for the industrial environment with high reliability and safety requirements.

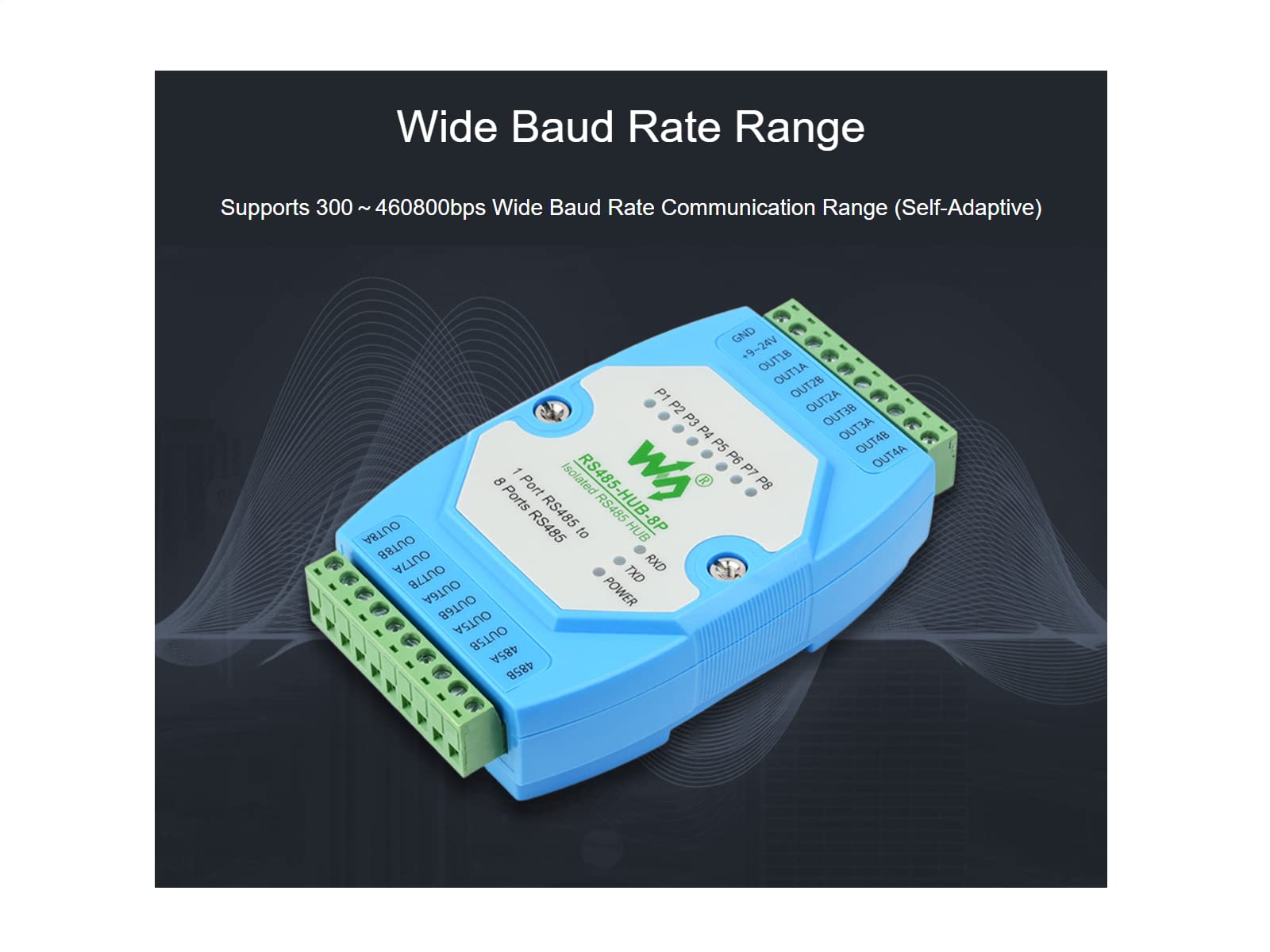

- 【Wide Baud Rate Range】Supports 300～460800bps Wide Baud Rate Communication Range (Self-Adaptive)
