BIGTREETECH Manta M8P V2.0 Integrated Control Board 32Bit Running Klipper with CB1, High Speed 3D Printer Motherboard, Compatible TMC5160T Plus,TMC5160,TMC2209,TMC2240 Stepper Driver (Without CB1)

Marchio: BIQU
Socket CPU: LGA 1724
Dispositivi compatibili: Stampante
Tecnologia memoria RAM: DDR4
Processori compatibili: STM32H723ZET6
Tipo di chipset: STM32H723ZET6
Velocità di clock della memoria: 550 MHz
Nome modello: Manta
Tipo di connettore di alimentazione principale: Jack DC
Interfaccia scheda video: Integrato

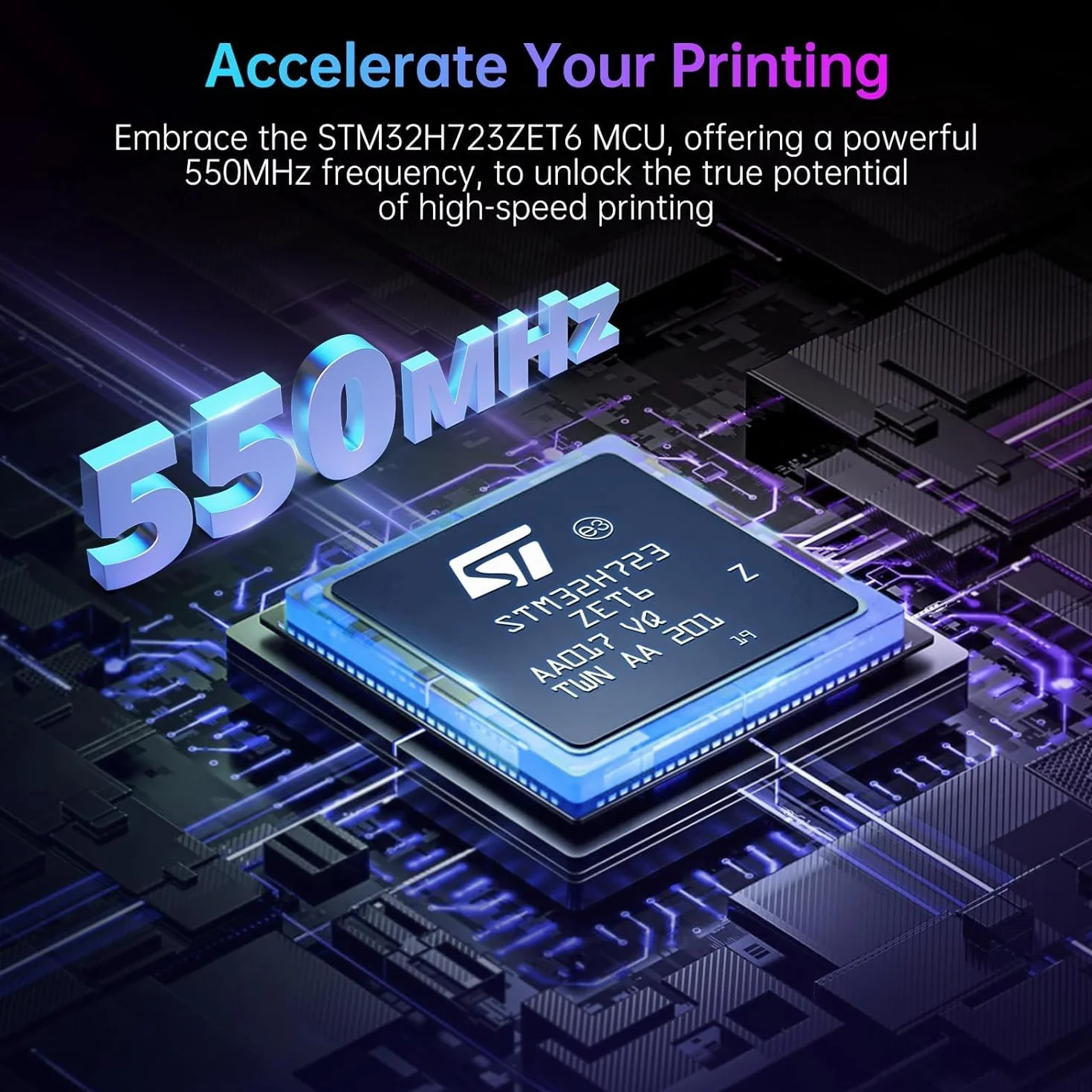

- BIGTREETECH Manta M8P V2.0 Control Board uses 32-bit ARM Cortex-M7 series STM32H723ZET6 main control chip with a core frequency of 550MHz. High efficiency MOSFET for less heat generation
- The power chip of Manta M8P integrated main control board adopts TPS5450-5A, which supports DC12/24V power input; the output current of this chip is up to 5A, and the peak value can reach 6A, which perfectly supports the power supply of Raspberry-Pi

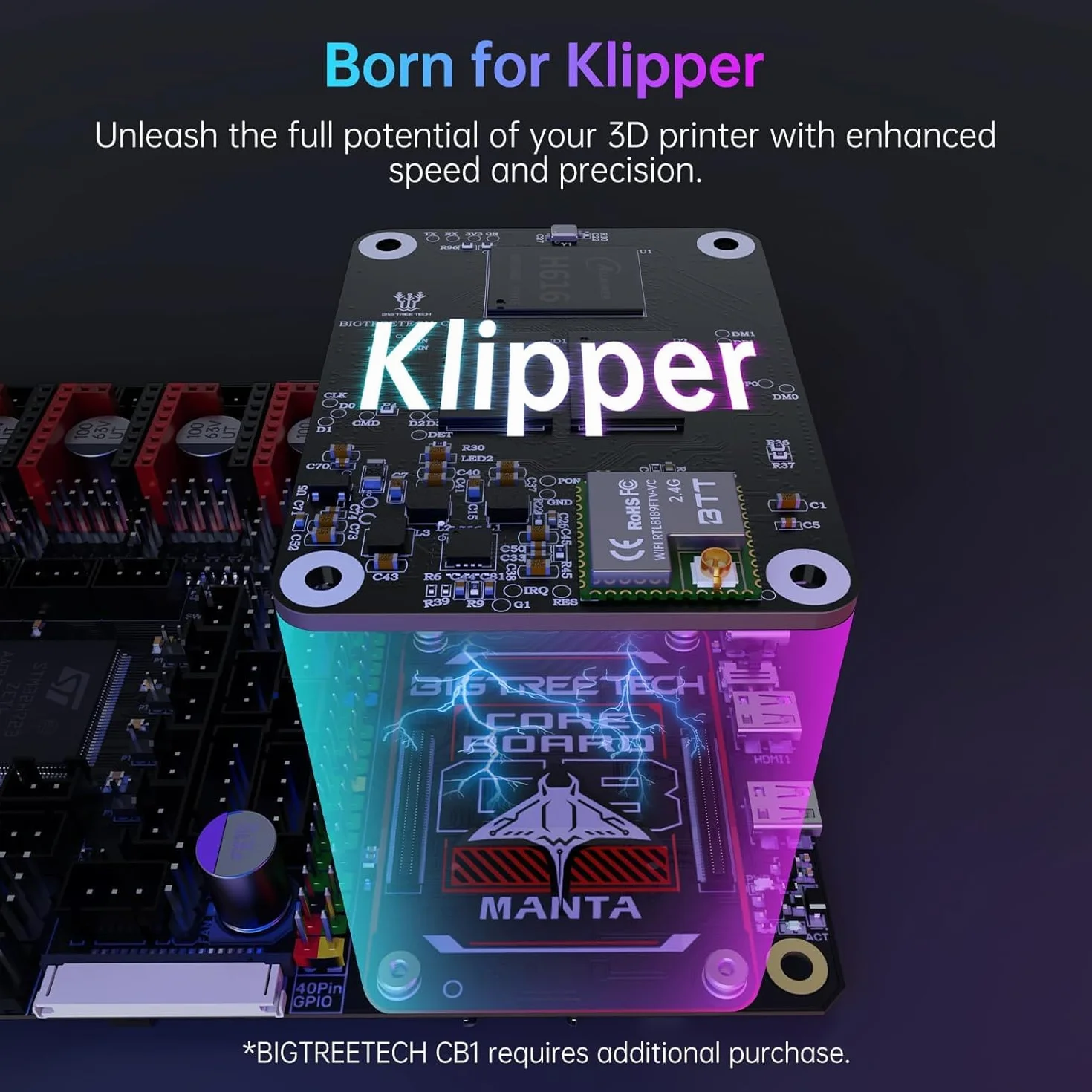

- The control board and the core board use BTB connection method, so that other core board solutions other than CM4 can be selected, such as BIGTREETECH CB1. The mainboard reserves the SPI expansion interface for using the Klipper firmware to connect an external acceleration sensor for acceleration compensation
- The thermistor can select the pull-up resistance value through the jumper, which supports PT1000 without external modules, which is convenient for DIY use; the control board reserves a three-way four-wire fan interface, which can be used to connect a water cooling device
- The MCU firmware can be upgraded through SD card, or through DFU through Klipper's make flash command; the main board reserves the proximity switch interface, supports NPN and PNP type selection, (24V, 12V, 5V) voltage optional, shared with VFAN6 Voltage selection
